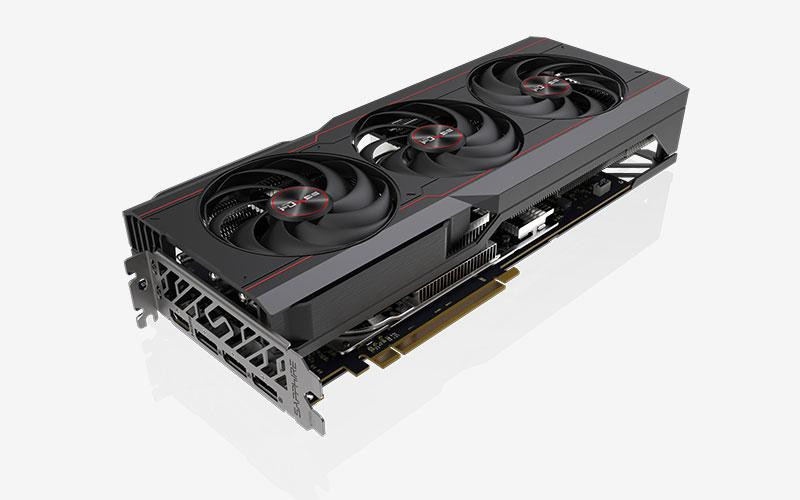

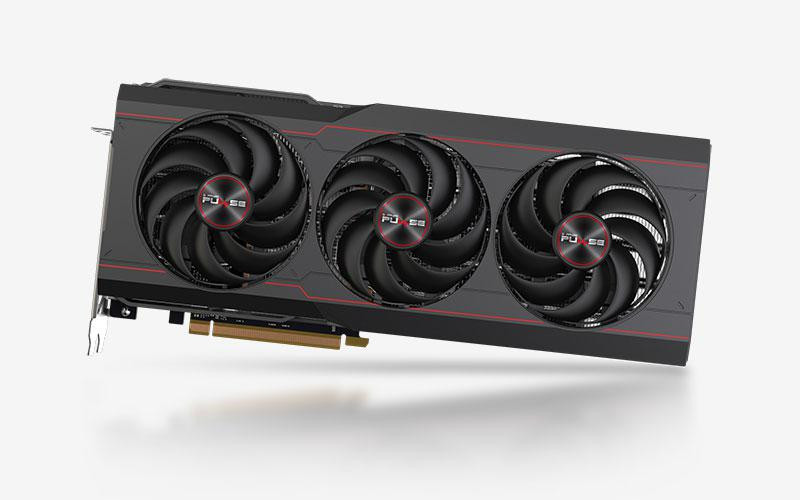

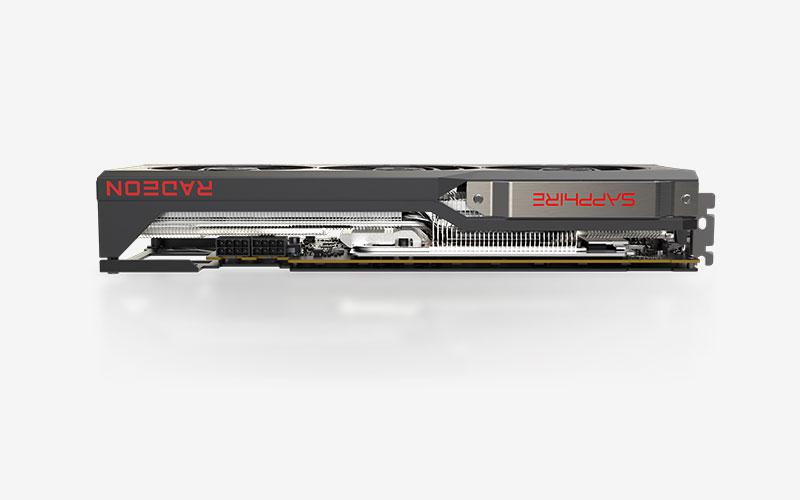

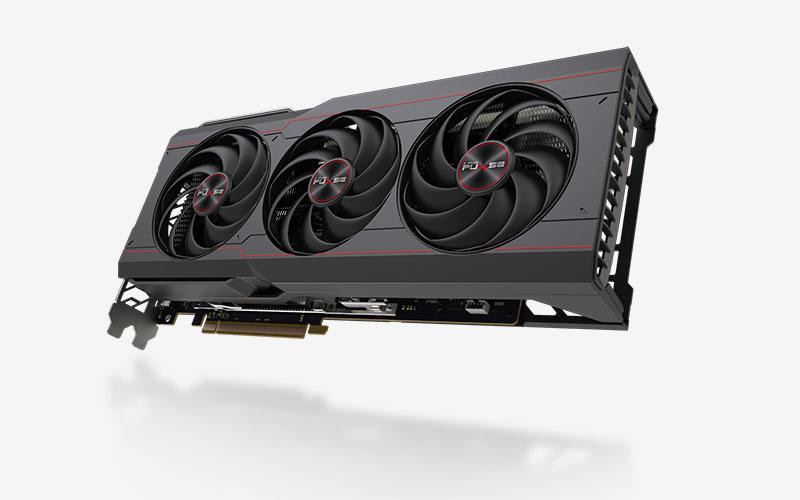

Sapp PULSE AMD Radeon RX 6800 XT

Descriere

GPU

AMD Radeon™ RX 6800 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

• Boost Clock: Up to 2310 MHz
• Game Clock: Up to 2065 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4608

Infinity Cache

128MB

Ray Accelerators

72

Memory Size/Bus

16GB GDDR6

Memory Clock

16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0

Output

• 1x HDMI
• 3x DisplayPort

BIOS Support

• Dual UEFI

Game Index

4K

Sapphire Features

• Dual BIOS
• Digital Power Design
• Fuse Protection
• Tri-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control

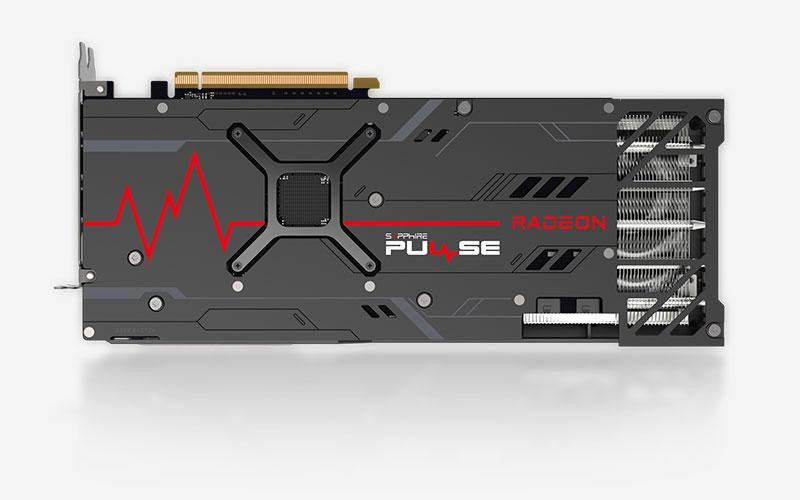

• Backplate
• Two-Ball Bearing Fans
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA™ 2 Gaming Architecture
• DirectX® 12 Ultimate
• Hardware Raytracing
• 7nm GPU
• GDDR6 Memory
• PCI® Express 4.0 Support
• AMD FreeSync™ Technology
• DisplayPort™ 1.4 with DSC
• HDMI™ 2.1 VRR
• Video Streaming up to 8K
• Radeon™ VR Ready Premium
• AMD FidelityFX
• Radeon™ Image Sharpening
• Radeon™ Anti-Lag
• Radeon™ Software
• Game Driver Optimizations
• High Performance 4K Gaming

Cooling

3 Fans

Form Factor

2.7 slot, ATX
Dimension: 313(L)X 134.8(W)X 53.4 (H)mm

Power Consumption

• 350W

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

• Minimum 750 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
